The Purpose of Good Ventilation
A Mechanical Ventilation Fan drives outside air into a building in order to improve the indoor air quality.
The primary goal of introducing fresh air into a space is to remove dangerous indoor air pollutants.
An Air Exchanger exchanges air between indoors and outdoors. It’s primary goal is the bring in fresh air from outside and exchange it with the stale inside air flow.
Foreign Reports show that when air conditioning or heating is used in a room, turning on the home ventilation fan can save 15%~35% than when not. This is a great choice for indoor ventilation and air exchange.

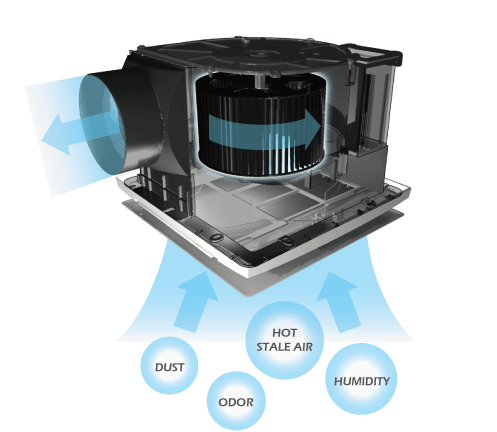

Purpose and Function of the Ventilation Fan
The ventilation fan was designed to eliminate poor indoor air and exhaust hot humid air, unhealthy particle matter and odor to the outside. The duct’s backdraft damper will effectively block waste gas in the common duct from flowing back into the room. In general, the ventilation fan can be applied widely in homes and public places.
| Function of the Ventilation Fan | |
|---|---|
| ELIMINATES DUST |
Eliminates dust and dirt which may cause respiratory disease and helps provide a clean, fresh and safe environment to your home.
|
| ELIMINATES ODOR |
Swiftly exhausts odors produced indoors, either from the kitchen or restroom, and creates a refreshing and comfortable environment.
|
| ELIMINATES MOISTURE |
Eliminates moisture in a damp room, such as the bathroom, to protect building materials from mold and mildews damage problems.
|
| ELIMINATES HOT AIR |
Exhausts uncomfortable hot air in the room to the outside, and brings in natural outdoor air to create a cool environment.
|
TUMÄ Eco DC Brushless Ventilation Fan
TUMÄ is a brand created by Sunon for its air exchange fan products. Based on its 35 years of exquisite energy-saving technology, Sunon is engaged in the pursuit of craftsmanship and minimalist beauty in German design. The firm desires to make an energy-saving, silent and refreshing new-generation health and residential ventilation product.
| TUMÄ Ventilation Fan |
|---|
|
- TUMÄ Eco DC Brushless Ventilation Fan uses DC motor technology.
|
|
- Features energy saving up to 80% compared to AC motor.
|
|
- Ultra-low power consumption of merely 4.5W.
|
|
- Ultra-high air flow of 120m3/h.
|
|
- High Energy Efficiency of 19m3/hr/W.
|
|
- Save money on your electricity bills up to 80% and save the environment.
|

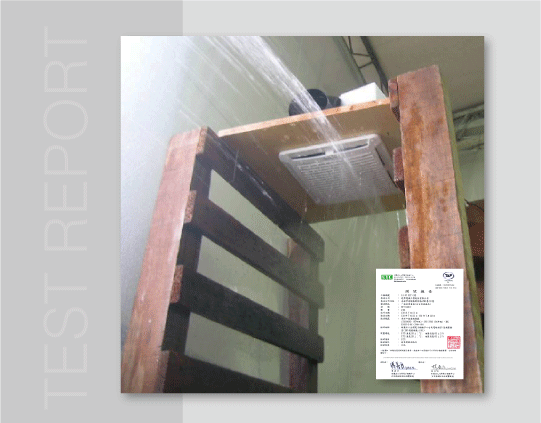

IP25 Certified
The TUMÄ Eco DC Brushless Ventilation Fan is the only dust-proof/water-proof third-party IP25-certified by fan in the industry.

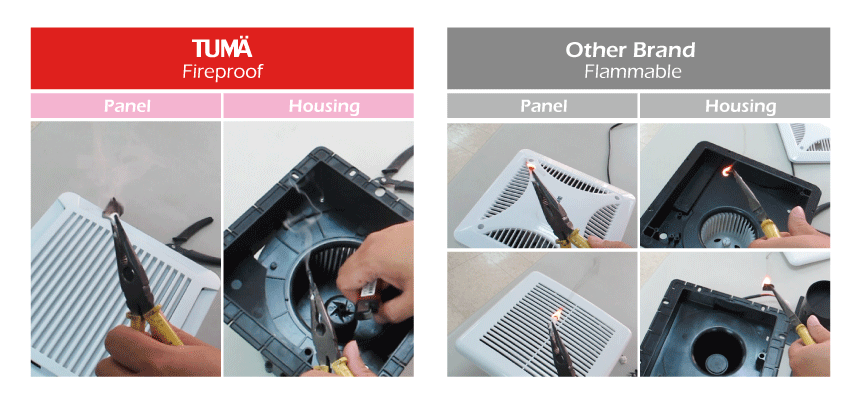

International Fire Safety Design
The TUMÄ Eco DC Brushless Ventilation Fan meets a high international fire safety design.
Sunon selects fireproof materials that conform to BSMI, UL 94V0 in Taiwan.
The housing also meets the USA requirement for building fireproof UL 94V-5VA, the highest flammability class.
Flammability classes are categorized as follows :
| Fireproof Level | Fireproof Plastic Type | Content |
|---|---|---|
| LOW | UL94-HB |
The lowest flame retardant class in UL94. For samples required to be 3~13mm thick, their burning speed must be less than 40 mm/min. For samples less than 3 mm thick, their burning speed must be less than 70 mm/min; or must go out before the 100mm mark.
|
| UL94-V2 |
After the sample is burn-tested for 10 seconds 2 times, the after flame and after glow go out within 60 seconds. The falling particles can ignite cotton.
|
|
| UL94-V1 |
After the sample is burn-tested for 10 seconds 2 times, the after flame and after glow go out within 60 seconds. The falling particles cannot ignite cotton.
|
|
| UL94-V0 |
After the sample is burn-tested for 10 seconds 2 times, the after flame and after glow go out within 30 seconds. The falling particles cannot ignite cotton.
|
|
| UL94-5VB |
After the sample is burn-tested for 5 seconds 5 times, the after flame and after glow go out within 60 seconds. The falling particles cannot ignite cotton. Block-shaped samples are allowed to be burned through.
|
|
| HIGH | UL94-5VA |
After the sample is burn-tested for 5 seconds 5 times, the after flame and after glow go out within 30 seconds. The falling particles cannot ignite cotton. Block-shaped samples are not allowed to be burned through.
|
TUMÄ Flow2one-AHR Ventilation Fan
TUMÄ Flow2one - AHR Ventilation Fan is a single room ventilation solution. The fan provides a continuous air exchange in the room by reducing stale air in order to improve indoor air quality. The Flow2one-AHR Ventilation Fan helps you have an airtight, energy efficient home and that's also healthy and well-ventilated.
| TUMÄ Flow2one |
|---|
|
- Residential anti PM2.5 particulate best choice.
|
|
- Ultra-low power consumption of merely 2.7W.
|
|
- Ultra-high air flow of 34m3/h.
|
|
- Noise Level 30.1dB(A).
|
|
- High Energy Efficiency of 42%.
|
|
- Power Rating 100-240(V), 50/60(Hz).
|

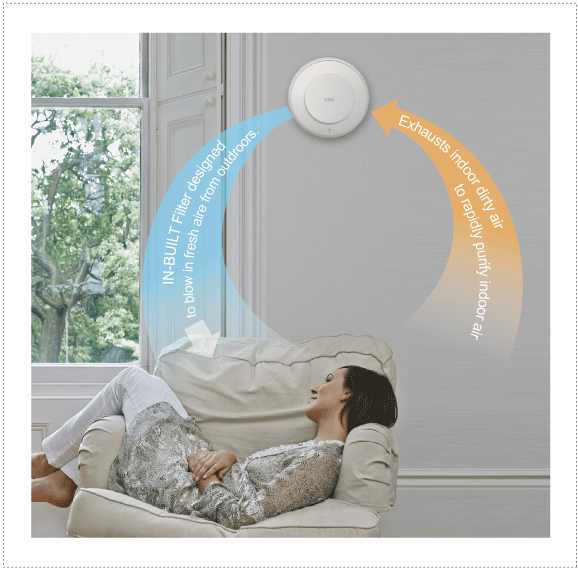

What is the Flow2one?
The TUMÄ Flow2one can be mounted easily. Like a mini total heat exchanger, it can bring in regulated outdoor air into the indoor space through a PM2.5 filter and heat exchange. In this way, it balances indoor temperature and humidity and exhausts poor air to the outside. From now on, your home can exchange air without opening windows. And you can enjoy fresh air in it any time.
Function of the TUMÄ Flow2one

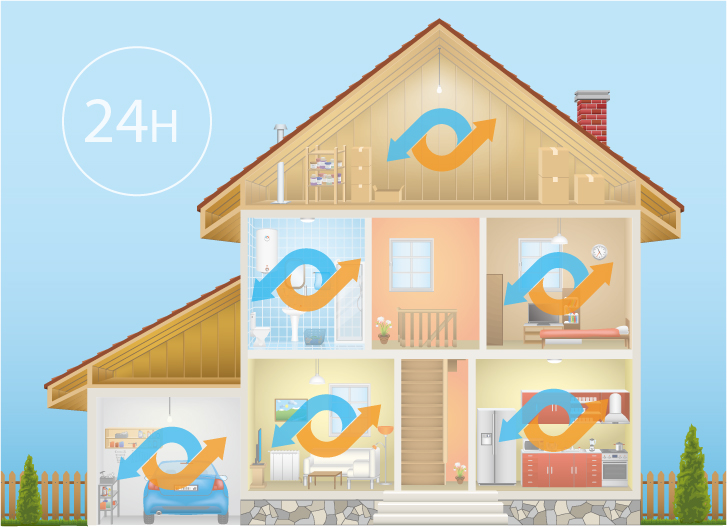

The TUMÄ Flow2one was designed to solve the ventilation and air exchange problems in your home in an intuitive manner. It can operate 24 hours a day, 365 days a year without opening windows to provide fresh natural air for your entire house. Moreover, It can eliminate toxic and harmful gas in it, improve the indoor air quality, and protect the indoor space from mildew. It safeguards the building as well as your health. The Flow2one system for home avoids dust, noise, flying insects due to opening windows. It also implements ventilation, energy saving, pleasant looking, silent effect in a better way than other ventilation devices.
You don't need to open the doors and windows to bring in fresh air.
But can keep interior "climate" at a constant level.

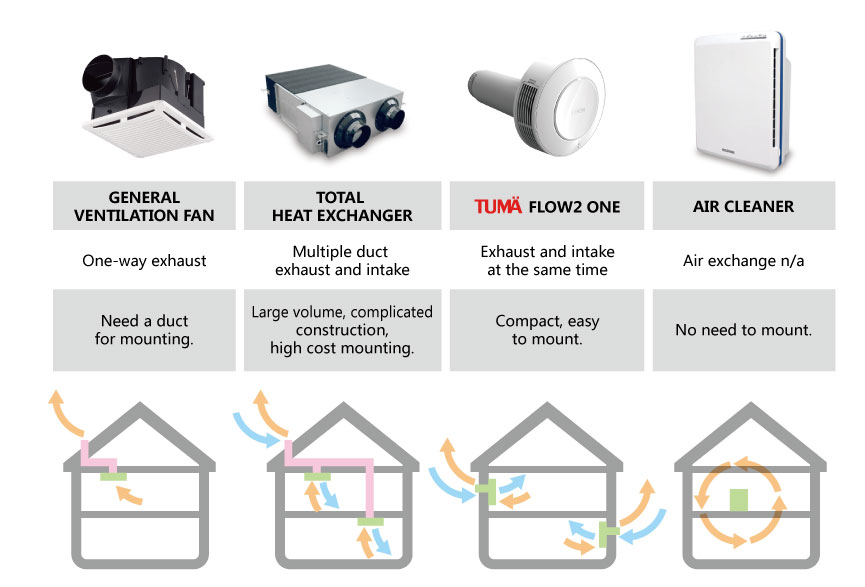

Ventilation Products Comparison
